Carbon fiber composite rods manufactured in pultrusion, for industrial and energy applications.
![](https://www.epsilon-composite.com/wp-content/uploads/2022/06/Joncs-100-carbone-FO-1100x620.jpg)
Our composite rods are manufactured in pultrusion in our French factory in Gaillan Médoc according to the strictest industrial standards.
- Epoxy matrix (or other specific matrices as required),
- High Strength (HR / HS), Intermediate Modulus (IM), High Modulus (HM) or Very High Modulus (THM / UHM) carbon fiber depending on the mechanical requirements.
- Function integration (optical fiber, thermoplastic protective layer, glass fiber insulating layer…)
- Customized section (from Ø3mm to Ø30mm)
- Custom length, up to 10km
Learn more about the different types of carbon fibers
List of our main standard rod dimensions (custom size on request):
Product designation | Diameter | Thickness | Weight/m | ||
Round Ø6,5 | UD | HS | 6,5 mm | 6,5 mm | 53 g/m |
Round Ø8 | UD | HS | 8,0 mm | 8,0 mm | 78 g/m |
Round Ø10 | UD | HS | 10,0 mm | 10,0 mm | 121 g/m |
Round Ø12 | UD | HS | 12,0 mm | 12,0 mm | 176 g/m |
Round Ø15 | UD | HS | 15,0 mm | 15,0 mm | 276 g/m |
Carborod Ø8* | UD | HS / UHM | 8,0 mm | 8,0 mm | 90 g/m |
Carborod Ø10* | UD | HS / UHM | 10,0 mm | 10,0 mm | 144 g/m |
Carborod Ø12* | UD | HS / UHM | 12,0 mm | 12,0 mm | 220 g/m |
*Carborods are delivered with peel ply
Composite cores for cables & electrical conductors

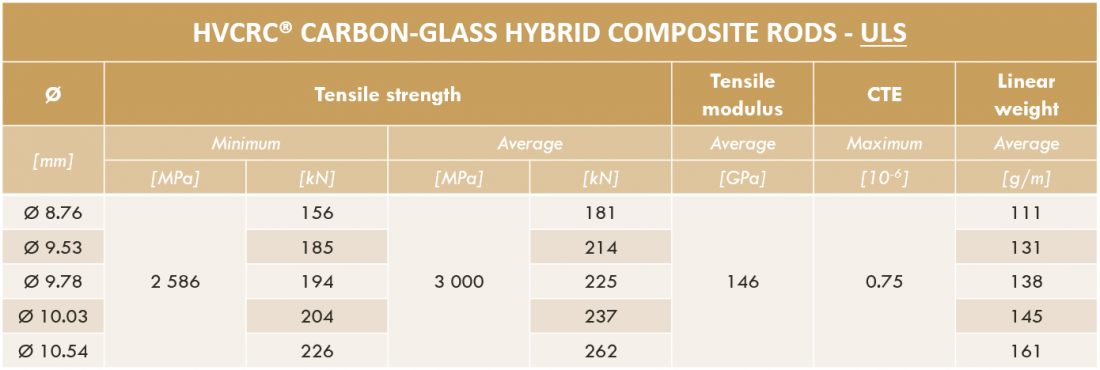

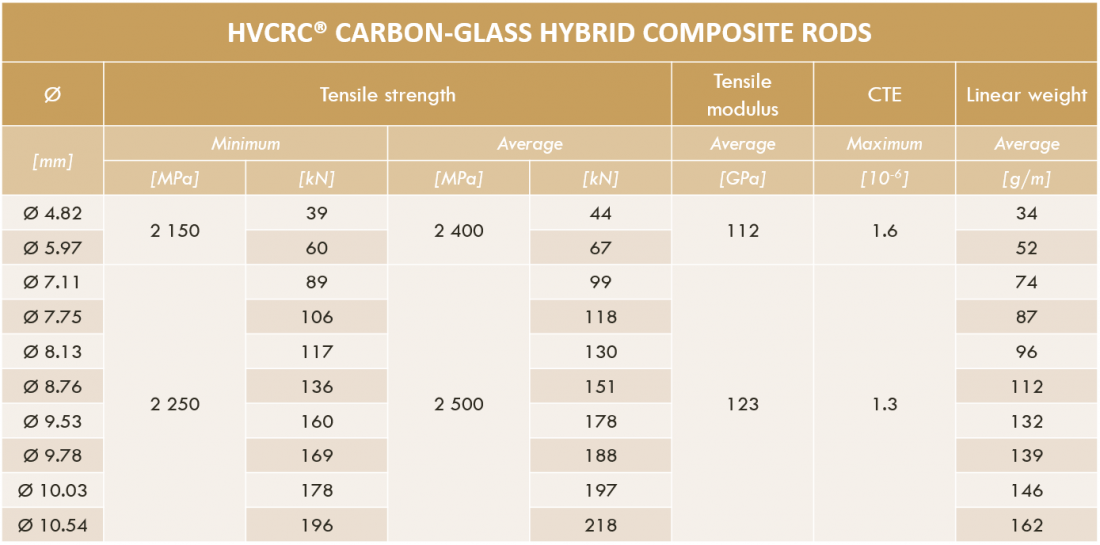

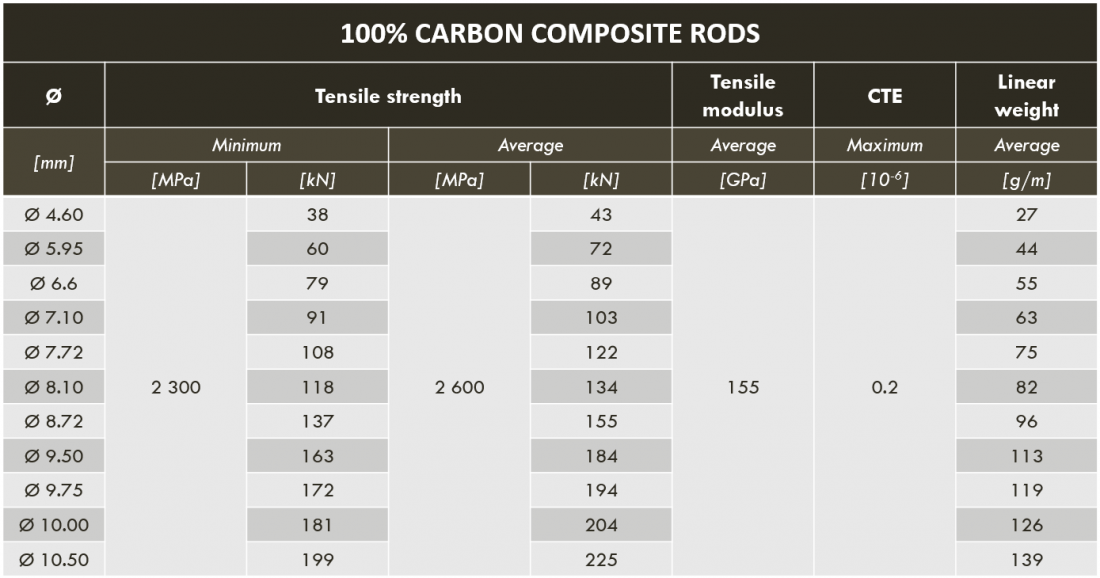

We manufacture 100% carbon fiber cores as well as carbon & glass fiber hybrid cores for advanced conductors, also known as HTLS type 4 conductors.
For more information on our activities for high voltage conductors, visit our dedicated website www.epsilon-cable.com
![](https://www.epsilon-cable.com/wp-content/uploads/2024/02/Gamme-joncs-carbone-Epsilon-Cable.jpg.webp)
